KYMCO Fuel Pump Chart: Part Numbers by Model

Every KYMCO fuel pump assembly in one chart: the OEM part numbers for scooters, ATVs and UXVs, with the models each pump fits.

Updated September 27, 2026 By Michal B., KYMCO parts specialist 5 min read37 genuine part numbers

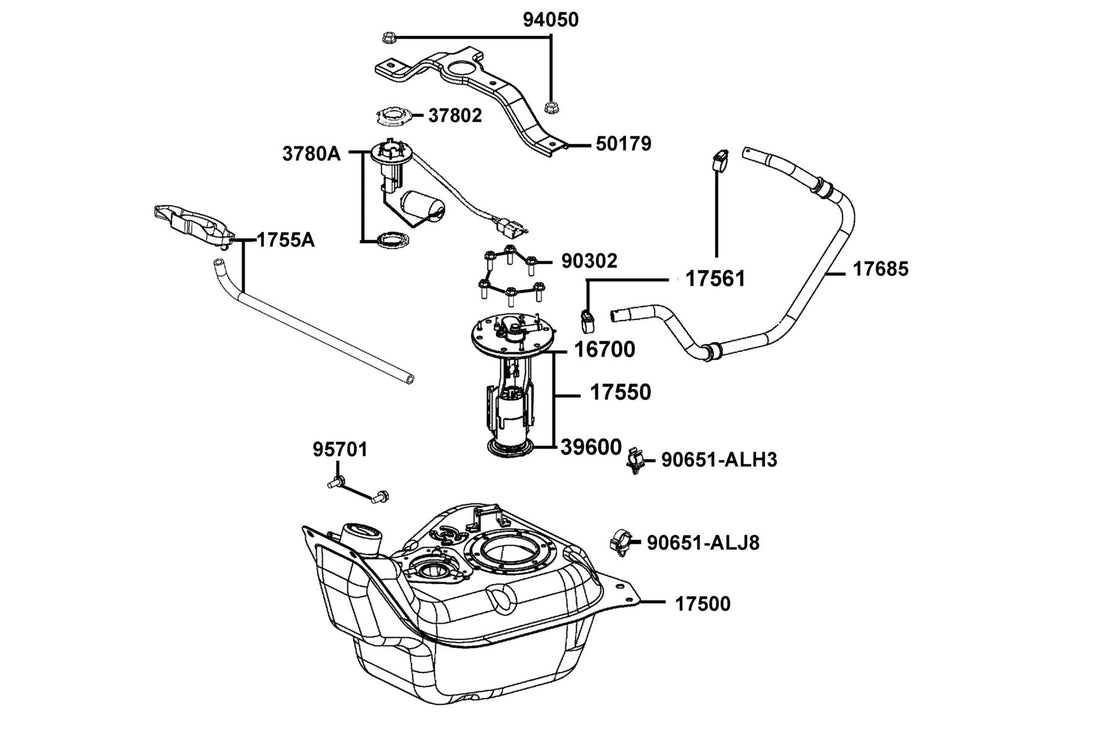

KYMCO Like 150i ABS (2026) F10 Fuel Tank parts diagram

The fuel pump differs from one KYMCO model to the next, so the factory part number is the way to get the right one. This chart lists every complete fuel pump assembly in our catalog with the models it fits. The seals, tubes and connectors around the pump are separate parts on the same diagram.

  • Genuine part numbers25every one from KYMCO's own catalogue
  • Model families89Scooter, Side by side, ATV, Motorcycle
  • Drawn onF10 Fuel Tankon the Like 150i ABS (2026); the code differs by model
  • Check firstFilter, line, batterya stall under load is often not the pump

KYMCO fuel pump part numbers by model

OEM fuel pump part number Fits Models
1755A-LKC3-E00 on the factory drawing 1755A-LKC3-E00Fuel Pump Assembly UXV 450i (2015, 2017, 2018, 2020), UXV 450i LE (2016 to 2020), UXV 450i CAMO (2017), UXV 450i Prime (2018), UXV 450 (2021), UXV 500i (2012, 2014, 2016, 2017), UXV 500i SE (2012), UXV 500i LE (2012, 2014, 2015), UXV 500i SPORTY (2013), UXV 500i SP (2014), UXV 500i HE (2014, 2016), UXV 500i TURF (2014), UXV 700i (2014, 2016 to 2020), UXV 700i HE (2014, 2016), UXV 700i LE (2014 to 2019), UXV 700i CAMO (2017), UXV 700i TURF (2014, 2016, 2017), UXV 700i LE EPS (2017, 2020), UXV 700 (2021), UXV 700i LE HUNTER (2018, 2019), UXV 700i LE PRIME (2018, 2019), UXV 500i G (2015) 195
1755A-LKA8-E00 on the factory drawing 1755A-LKA8-E00Fuel Pump Assembly MXU 700i (2013, 2015 to 2019), MXU 700i EPS (2017, 2018), MXU Hunter 700i (2018), MXU 700i Prime (2018), MXU 500i (2011, 2013 to 2017), MXU 500i Ford Built Tough (2012), MXU 500i LE (2015) 109
16700-KHE7-220 on the factory drawing 16700-KHE7-220Fuel Pump Assembly People S 250 (2007, 2008), People 250 (2004), LIKE 50 (2019), A-Town 50 (2020), Xciting 250 (2006, 2008), Movie 150i (2013), Bet & Win 150 (2006, 2008), Bet & Win 250 (2003, 2008), Grand Vista 250 (2004, 2008) 97
1755A-AEB8-M0B on the factory drawing 1755A-AEB8-M0BFuel Pump Assembly MXU 450i (2011, 2015, 2017, 2019 to 2021, 2023, 2024, 2026), MXU 450i LE (2011, 2015, 2017 to 2021, 2023, 2026), MAXXER 450i (2011, 2015, 2021), MXU 450 (2017) 53
17550-LEA7-M30 on the factory drawing 17550-LEA7-M30Module Fuel Pump Assembly DOWNTOWN GT 125 (2026), Downtown 200i (2011), Downtown 300i (2011 to 2013, 2016), DOWNTOWN GT 350 (2026) 43
17550-AEA7-M30 on the factory drawing 17550-AEA7-M30Fuel Pump Assembly LIKE (2019, 2021), NEW LIKE 150 (2019), Like 150 Noodoe (2019, 2020), LikeII 150i (2020), LikeII 150i ABS Noodoe (2021), Like 150i ABS (2021 to 2023, 2026), Like 150 Noodoe ABS (2022), Like 150i Noodoe ABS (2023) 37
17550-LEA2-M31 on the factory drawing 17550-LEA2-M31Fuel Pump Assembly Compagno 50 (2013), Compagno 110i (2013, 2016) 32
16700-ALB8-930 on the factory drawing 16700-ALB8-930Fuel Pump Complete NEW LIKE 150 (2019), Like 150 Noodoe (2019, 2020), LikeII 150i (2020), LikeII 150i ABS Noodoe (2021), Like 150i ABS (2021 to 2023, 2026), Like 150 Noodoe ABS (2022), Like 150i Noodoe ABS (2023) 28
1755A-AKB9-M00 on the factory drawing 1755A-AKB9-M00Fuel Pump Assembly UXV 450i (2022 to 2024), UXV (2022, 2023), UXV 450i Platform (2023), UXV 450i LE EPS (2023, 2024), UXV 700i (2023 to 2025), UXV 700i LE (2023 to 2025) 28
1755A-AGA8-M01 on the factory drawing 1755A-AGA8-M01Fuel Pump Assembly MXU 700i LE (2021, 2023 to 2025), MXU 550 (2021), MXU (2022), MXU 550i (2023, 2026), MXU 550i EPS (2024, 2025) 18
17550-LDF2-MY0 on the factory drawing 17550-LDF2-MY0Module Fuel Pump Assembly Xciting R 250i (2009), Xciting R 500i (2009, 2013, 2014), Xciting R 500i ABS (2009) 16
17550-LGS6-M30 on the factory drawing 17550-LGS6-M30Fuel Pump Assembly Like 200i (2012, 2013), LIKE 200 (2010), LIKE (2019) 16
17550-ALH3-900 on the factory drawing 17550-ALH3-900Fuel Pump Assembly SPADE 150 FI (2018, 2020, 2021) 10
17550-LEA7-800 on the factory drawing 17550-LEA7-800Module Fuel Pump Assembly X-TOWN300i ABS (2019, 2022, 2023), X-TOWN 300 (2018) 9
1755A-AGA8-E00 on the factory drawing 1755A-AGA8-E00Fuel Pump Assembly MXU 700i (2019), MXU 700 (2020, 2021), MXU 700 Exi (2019), MXU 700 LE (2020) 9

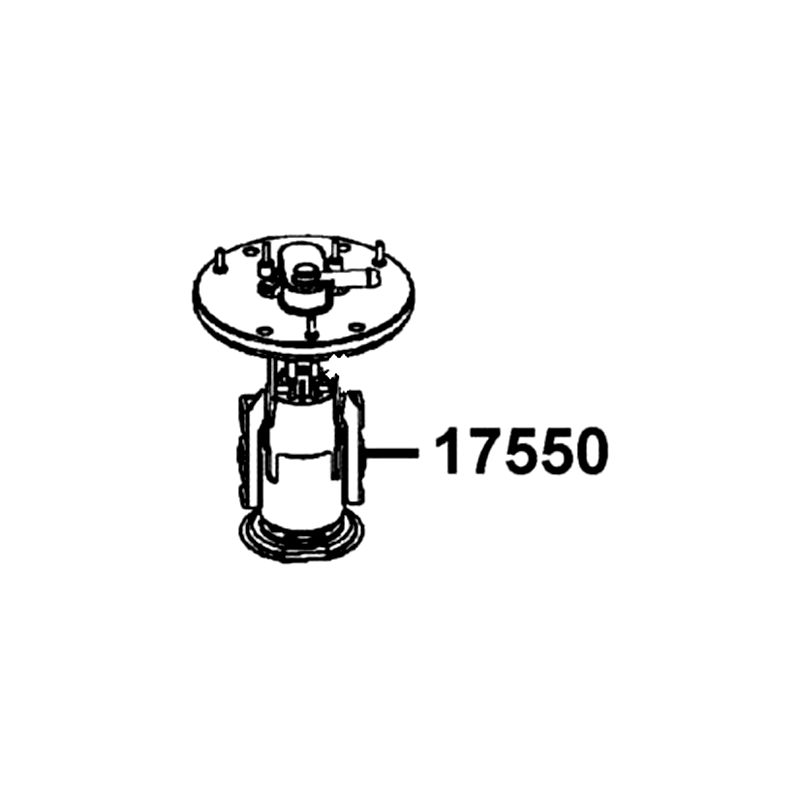

17550-AAB6-E15 on the factory drawing 17550-AAB6-E15Fuel Pump Assembly New People S 150 (2020, 2023), People S 150i ABS (2022, 2026) 8
17550-LGE5-M30 on the factory drawing 17550-LGE5-M30Fuel Pump Assembly People GTi 200 (2012, 2013), People GTi 300 ABS (2012), PEOPLE GTi 300 (2016) 8
17550-KKE5-E00 on the factory drawing 17550-KKE5-E00Fuel Pump Assembly MyRoad 700i (2014) 6
17550-LEA7-C00 on the factory drawing 17550-LEA7-C00Assye Fuel Pump X-Town 300i ABS (2020, 2021), DT X 360 (2026) 6
1755A-PTA1-800 on the factory drawing 1755A-PTA1-800Fuel Pump Assembly MAXXER 450i (2023, 2025, 2026) 6

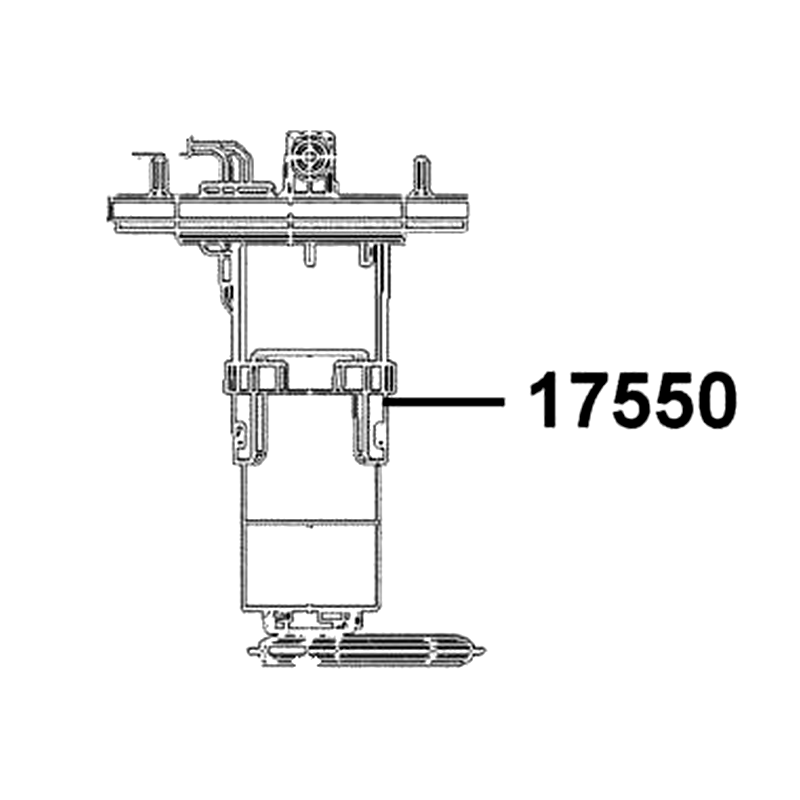

17550-AAB6-M30 on the factory drawing 17550-AAB6-M30Fuel Pump Assembly SUPER 8 R (2026), Super 8 50 (2026) 4
16700-GKAK-220 on the factory drawing 16700-GKAK-220Fuel Pump Assembly Filly 50 (2002) 3
17550-AKB8-E00 on the factory drawing 17550-AKB8-E00Fuel Pump Assembly AK 550 ST (2026) 2
17550-BLD3-M00 on the factory drawing 17550-BLD3-M00Fuel Pump Assembly MONGOOSE 110i (2025) 2
17550-LKF5-M30 on the factory drawing 17550-LKF5-M30Fuel Pump Assembly Xciting 400i ABS (2018) 2

Where the fuel pump is drawn

Open a card to see the fuel pump on that machine's factory diagram, with its callout number and every neighbouring part. The same part can sit under a different diagram code on another model, so use the chart above to find yours.

KYMCO Like 150i ABS (2026) F10 Fuel Tank parts diagramF10 Fuel TankLike 150i ABS (2026) · ScooterOpen the diagram → KYMCO UXV 700i (2025) F10 Fuel Tank parts diagramF10 Fuel TankUXV 700i (2025) · Side by sideOpen the diagram → KYMCO MXU 450i (2026) F10 Fuel Tank parts diagramF10 Fuel TankMXU 450i (2026) · ATVOpen the diagram → KYMCO SPADE 150 FI (2021) F11 Fuel Tank parts diagramF11 Fuel TankSPADE 150 FI (2021) · MotorcycleOpen the diagram →

Before you replace the pump

A machine that will not start or stalls under load can have a blocked fuel filter, a pinched fuel line or a weak battery rather than a failed pump. Check those first, then confirm the pump part number on your model's fuel tank or fuel pump diagram.

How to confirm fitment for your exact model

Model names repeat across years and regions, so the safest way to order the right fuel pump is to confirm it on your model's own diagram:

  1. Find your machine. Pick it on the All Models page, or decode your VIN with the VIN lookup to land on the exact model year and colour.
  2. Open the diagram. The exploded views mirror KYMCO's factory fiche; the diagram cards on this page show which drawing the fuel pump sits on.
  3. Match the number, then order. Check that the number on the diagram matches the row in the chart, then follow it to the product page on kymcopartsstore.com, where the part is ordered.

If a part number has been superseded, the product page shows the replacement, so you always receive the current factory part.

Find your KYMCO and see every part on its drawingType your VIN or pick the model, year and colour, then click the part on the factory diagram.
Look up your VINBrowse all models

Service specs by model

For one machine's battery, plug, oil, belt, torque figures and service intervals on a single page, open its service sheet:

Sources

  • Part numbers and fitment: KYMCO's factory parts catalogue, the same exploded-view diagrams as our parts diagrams.
  • Service intervals, torque and capacities for your exact model and year: KYMCO USA owner's manuals. Where this guide and your manual differ, the manual wins.
