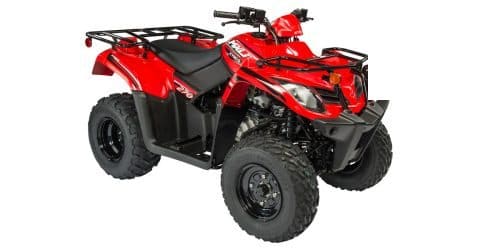

KYMCO MXU 270i Euro Service Specs: Part Numbers and Intervals
Battery, spark plug, oil, filters, belt and torque for the KYMCO MXU 270i Euro: KYMCO service data with the genuine part number and diagram for each.
This is the service sheet for the KYMCO MXU 270i Euro (4-stroke OHC single, liquid cooled, 271 cc, fuel injected, V-belt automatic with high, low and reverse, shaft drive). It lists the battery, spark plug, filters, belt and the rest, each figure with the genuine KYMCO part number for the model years in our catalog (2020-2021, 2023, 2026) and the diagram the part is drawn on. The figures are KYMCO service data from the KYMCO MXU 270i Euro service manual (model LF60AA). When this page and your own manual disagree, the manual wins.
- Engine4-stroke OHC singleliquid cooled, 271 cc, fuel injected, V-belt automatic with high, low and reverse, shaft drive
- Engine oilSAE 10W-301.4 L at an oil change, 1.6 L dry
- Spark plugDPR7EA-9gap 0.8-0.9 mm
- BatteryYTX14-BS12 V maintenance free
What to know before you order
The MXU 270i Euro is the fuel-injected, liquid-cooled 271 cc ATV, line LF60A, which also covers the 2020 and 2021 machines our catalog lists as MXU 270; the older carburetted MXU 270 (LA60J) has its own sheet. Engine oil and the strainer screen are due at 150 km and then every 1,000 km or 6 months, while the transmission (500 cc) and the rear final gear (100 cc) take SAE 90 every 2,000 km or 12 months. It takes a DPR7EA-9 plug gapped 0.8 to 0.9 mm, the coolant is replaced every 24 months, and our catalog lists the YTX14-BS battery for every year.
MXU 270i Euro service specs at a glance
| Item | Spec | Genuine part number | Diagram |
|---|---|---|---|
| Batteryall models | 12 V maintenance free; charge at 1.2 A for 5-10 h |  31500-LBA2-90A |
 F11 Battery |
| Spark plugall models | gap 0.8-0.9 mm |  98069-5791R-00 |
 E02 Head Cover · Cylinder Head Cylinder |
| Engine oil | SAE 10W-30; 1.4 L at an oil change, 1.6 L dry | ||
| Oil filterall models | strainer screen; clean at each oil change |  15421-1G07-001 |
 E04 Right Crankcase Cover · Water Pump |
| Transmission and final gear oil | SAE 90; transmission 500 cc at a change (600 cc dry), rear final gear 100 cc at a change (150 cc dry) | ||
| Coolant | 1,400 cc total (1,100 cc radiator plus 300 cc reserve), 30% mix standard; replace every 24 months; radiator cap 0.75-1.05 kg/cm² (10.65-14.91 psi) | ||
| Air filterall models | oiled foam, outer and inner element; clean every 1,000 km (600 mi) |  1721A-LBA7-900 |
 F13 Air Cleaner |
| Drive beltall models | width 23.6-24.4 mm new, replace at 22 mm |  23100-KHE7-90B |
 E05 Drive Pulley |
| Weight rollersall models | 23 mm OD new, replace at 22.8 mm |  22121-KHE7-305 |
E05 Drive Pulley |
| Brake padsall models | discs 3.8-4.2 mm new, 3.0 mm minimum; DOT 4 fluid |
 43105-LFE9-306 45105-LBA7-305 |
 F08 Rear Wheel |
| Tires | front 22 x 7-10, rear 22 x 10-10; 3.2 psi; 3 mm minimum tread |
 42710-ZXA3-M00 44710-ZXA3-M00 |
F08 Rear Wheel |
| Bulbs and fuses | fuses: fan 10 A; ignition, lights, 12 V socket and fuel 15 A each; main 30 A |
 34901-LDC8-E10 34905-LCA5-E00 34906-LBA8-E80 |
 F01 Light Head |
The diagrams behind this sheet
Each row of the table points at the factory drawing its part sits on. Open one to see the callout number, the quantity and the gaskets and bolts around it.
E02 Head Cover · Cylinder Head CylinderOpen the diagram →
E04 Right Crankcase Cover · Water PumpOpen the diagram →
E05 Drive PulleyOpen the diagram →
E06 Generator Starting MotorOpen the diagram →
F01 Light HeadOpen the diagram →
F08 Rear WheelOpen the diagram →
F11 BatteryOpen the diagram →
F13 Air CleanerOpen the diagram →
F21 Wire HarnessOpen the diagram →
MXU 270i Euro maintenance intervals
Whichever comes first, distance or time. The first service is the one riders skip and the one that matters most on a new or rebuilt engine.
| Item | Interval |
|---|---|
| Engine oil and strainer | at 150 km (90 mi), then every 1,000 km (600 mi) or 6 months |
| Transmission and final gear oil | check at 150 km (90 mi), replace every 2,000 km (1,250 mi) or 12 months |
| Drive belt | check at 150 km (90 mi), then every 2,000 km (1,250 mi) or 12 months |
| Air filter | clean every 1,000 km (600 mi), more often in dust or wet |
| Spark plug, valve clearance | at 150 km (90 mi), then every 1,000 km (600 mi) or 6 months |
| Coolant | check every 1,000 km (600 mi) or 6 months, replace every 24 months |
Torque for the parts you replace
Clean, dry threads unless the row says otherwise. Aluminium cases strip long before a steel bolt complains, so use a torque wrench on the drain bolt and the plug.
| Fastener | N·m | ft-lb |
|---|---|---|
| Spark plug | 15-20 | 11-14 |
| Engine oil drain plug | 25 | 18 |
| Oil strainer screen cap | 15 | 11 |
| Transmission check and drain bolts | 18-22 | 13-16 |
| Final gear oil check and drain bolts | 20 | 14 |
| Drive face nut | 88-98 | 65-72 |
| Clutch outer nut | 49-59 | 36-43 |
| Wheel nuts | 49-59 | 36-43 |
| Front wheel hub nut | 59-78 | 43-58 |
| Rear wheel hub nut | 137-157 | 101-116 |
| Front caliper bracket bolts | 24-29 | 17-22 |
| Rear caliper bracket bolts | 29-35 | 22-26 |
Electrical test values
Measured at about 20 °C with the connector unplugged. A reading far outside the range points at the part; a reading inside it sends you back to the wiring and the connectors.
| Part | Test value | Genuine part number |
|---|---|---|
| Ignition coil | primary 0.55-0.75 Ω; plug cap 4.2-5.2 kΩ |  3051A-ZVA6-M00 |
| Crank position sensor | 96-144 Ω | |
| Stator | any two of the three yellow wires, 0.1-1.5 Ω |
 31100-AGA1-M00 31120-AGA1-M00 |

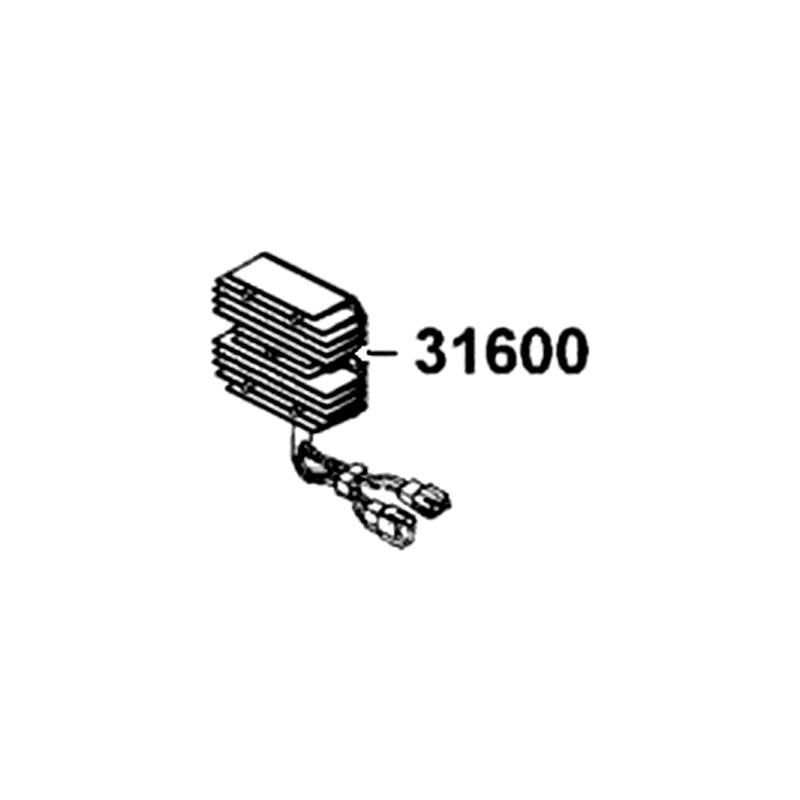

| Regulator rectifier | charging limit 13.5-14.5 V |  31600-ZXA6-M01 |

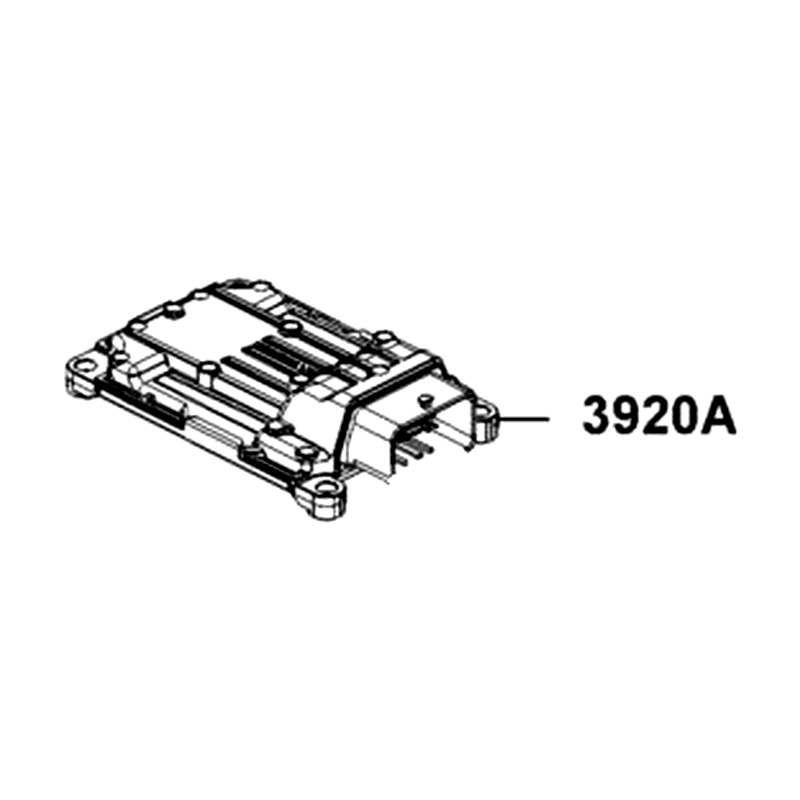

| Fuel injection | injector 10.6-15.9 Ω; fuel pump 250 ± 10 kPa |  3920A-AHH8-M00 |
Every MXU 270i Euro part, drawn on its factory diagram: KYMCO MXU 270i Euro parts diagrams.
Which model year do I have?
The year decides which number is yours where a row lists more than one. Decode your VIN with the VIN lookup, or read the model code on the frame plate, then open that year's diagrams from the model list.
