KYMCO Carburetor Chart: Part Numbers by Model and Year

Every KYMCO carburetor and throttle body assembly in one chart: the OEM part numbers with the models and model years each one fits.

Updated September 27, 2026 By Michal B., KYMCO parts specialist 8 min read106 genuine part numbers
KYMCO People 50 (2008) E11 Carburetor parts diagram

Carburetted KYMCO models use a complete carburetor assembly; fuel-injected models use a throttle body assembly in the same place. This chart lists both with the models and model years each part number fits, because the number can change from one model year to the next. Jets, needles, gaskets and the insulator are separate parts on the same diagram.

  • Genuine part numbers93every one from KYMCO's own catalogue
  • Model families143Scooter, ATV, Side by side, Motorcycle
  • Drawn onE11 Carburetoron the People 50 (2008); the code differs by model
  • Two kindsCarb or throttle bodycarburetted models vs fuel injected ones

KYMCO carburetor and throttle body part numbers by model

OEM carburetor or throttle body part number Fits Models
16100-PTA1-800 on the factory drawing 16100-PTA1-800Throttle Body Assembly MXU 450i (2011, 2015, 2017, 2019 to 2021), MXU 450i LE (2011, 2015, 2017 to 2021), MAXXER 450i (2011, 2015, 2021), MXU 450 (2017), MXU 500i (2011, 2013 to 2017), MXU 500i Ford Built Tough (2012), MXU 500i LE (2015), MXU 550 (2021) 106
16100-ALE8-900 on the factory drawing 16100-ALE8-900Throttle Body Assembly UXV 450i (2015, 2017), UXV 450i LE (2016 to 2018), UXV 450i CAMO (2017), UXV 450i Prime (2018), UXV 500i (2012, 2014, 2016, 2017), UXV 500i SE (2012), UXV 500i LE (2012, 2014, 2015), UXV 500i SPORTY (2013), UXV 500i SP (2014), UXV 500i HE (2014, 2016), UXV 500i TURF (2014) 94
1610K-PVA2-830 on the factory drawing 1610K-PVA2-830Carburetor Assembly MONGOOSE 90 (2007 to 2010, 2012 to 2015), Mongoose 90S (2016, 2018 to 2022) 83
16100-LKM8-900 on the factory drawing 16100-LKM8-900Throttle Body Assembly UXV 700i (2014, 2016 to 2018), UXV 700i HE (2014, 2016), UXV 700i LE (2014 to 2018), UXV 700i CAMO (2017), UXV 700i TURF (2014, 2016, 2017), UXV 700i LE EPS (2017), UXV 700i LE HUNTER (2018), UXV 700i LE PRIME (2018) 63
1610K-PVA1-810 on the factory drawing 1610K-PVA1-810Carburetor Assembly MONGOOSE 70 (2007 to 2009, 2012, 2014), Mongoose 70 S (2016, 2018 to 2022), MONGOOSE 50 (2007 to 2009) 62
1610K-LEC1-810 on the factory drawing 1610K-LEC1-810Carburetor Assembly MXU 300 (2008 to 2010, 2014), MONGOOSE 300 (2014), MXU 270 (2016, 2019 to 2021), Mongoose 270 (2016, 2018 to 2020), Mongoose (2021), MAXXER 300 (2019) 61
16100-LEH6-800 on the factory drawing 16100-LEH6-800Throttle Body Assembly MXU 700i (2013, 2015 to 2019), MXU 700i EPS (2017, 2018), MXU Hunter 700i (2018), MXU 700i Prime (2018), MXU 700 (2020), MXU 700 Exi (2019), MXU 700 LE (2020) 58
1610K-LDC8-M31 on the factory drawing 1610K-LDC8-M31Carburetor Assembly Agility 50 (2005, 2008, 2013, 2016, 2020 to 2023, 2025, 2026), Super 8 50R (2015), SUPER 8 50R ON-ROAD (2017), SUPER 8 50X (2017, 2020 to 2023, 2025, 2026), SUPER 8 (2016) 55
16100-LEE8-900 on the factory drawing 16100-LEE8-900Carburetor Assembly UXV 500 (2009 to 2011, 2014), UXV 500 SE (2011), UXV 500 LE (2011) 45
1610K-LLB1-900 on the factory drawing 1610K-LLB1-900Carburetor Assembly MXer 150 (2002, 2003), MXU 150 (2005, 2007 to 2009) 43
1610K-LBA7-900 on the factory drawing 1610K-LBA7-900Carburetor Assembly MONGOOSE 250 (2004, 2007), MXU 250 (2005, 2007) 36
1610K-LEC1-910 on the factory drawing 1610K-LEC1-910Carburetor Assembly MONGOOSE 250 (2008), MONGOOSE 300 (2008 to 2010), MXU 250 (2008, 2009) 36
1610K-PWB1-911 on the factory drawing 1610K-PWB1-911Carburetor Assembly MXU 375 (2009, 2010, 2012), MXU 375 LE (2010), MAXXER 375 (2010) 33
1610K-KFA6-M30 on the factory drawing 1610K-KFA6-M30Carburetor Assembly People 50 (2008), LIKE (2010), LIKE 50 LX (2012), LIKE 50 (2013), Super 8 50 (2010, 2011, 2016) 31
16100-AEA7-E10 on the factory drawing 16100-AEA7-E10Throttle Body Assembly NEW LIKE 150 (2019), Like 150 Noodoe (2019, 2020), LikeII 150i (2020), LikeII 150i ABS Noodoe (2021), Like 150i ABS (2021 to 2023, 2026), Like 150 Noodoe ABS (2022), Like 150i Noodoe ABS (2023) 28
16100-AGA6-M00 on the factory drawing 16100-AGA6-M00Throttle Body Assembly UXV 700i (2019, 2020, 2023 to 2025), UXV 700 (2021), UXV (2022), UXV 700i LE (2019, 2023 to 2025), UXV 700i LE HUNTER (2019), UXV 700i LE PRIME (2019), UXV 700i LE EPS (2020) 28
1610K-KED9-E00 on the factory drawing 1610K-KED9-E00Carburetor Assembly Venox 250 (2003, 2008) 27
1610K-LLB1-810 on the factory drawing 1610K-LLB1-810Carburetor Assembly MXU 150 (2010, 2012, 2016, 2019), MXU 150 X (2016, 2020, 2021, 2023, 2025) 27
1610K-LDB5-920 on the factory drawing 1610K-LDB5-920Carburetor Assembly MXU 500 (2007, 2008) 25
1610K-PWA1-910 on the factory drawing 1610K-PWA1-910Carburetor Assembly MXU 300 (2006, 2007), MONGOOSE 300 (2006, 2007) 25
16100-LCD4-E00 on the factory drawing 16100-LCD4-E00Carburetor Assembly (Stop Production ) People S 200 (2003, 2008) 24
16100-LFE9-900 on the factory drawing 16100-LFE9-900Carburetor Assembly MXU 500 (2009, 2010, 2014) 22
16100-AKG9-M00 on the factory drawing 16100-AKG9-M00Throttle Body Assembly MAXXER 450i (2023, 2025, 2026), MXU 450i (2023, 2024, 2026), MXU 450i LE (2023, 2026), MXU 550i (2023, 2026), MXU 550i EPS (2024, 2025) 21
1610K-LEA7-E00 on the factory drawing 1610K-LEA7-E00Throttle Body Assembly Downtown 300i (2011 to 2013, 2016) 21
1610K-LDF7-M31 on the factory drawing 1610K-LDF7-M31Carb Assembly Agility 125 (2006, 2008, 2013, 2020 to 2022) 20
1610K-KHB5-M31 on the factory drawing 1610K-KHB5-M31Carburetor Assembly People 150 (2008, 2012) 19
16100-AEF2-E00 on the factory drawing 16100-AEF2-E00Throttle Body Assembly UXV 450i (2018, 2020, 2022 to 2024), UXV 450i LE (2019, 2020), UXV 450 (2021) 18
16100-AGA1-M00 on the factory drawing 16100-AGA1-M00Throttle Body Assembly MXU 270 (2020, 2021), MXU 270i EURO (2023, 2026), Mongoose 270i (2023, 2024, 2026), Mongoose 270i EFI (2025) 18
1610K-KGB5-M30 on the factory drawing 1610K-KGB5-M30Carburetor Assembly Super 9 50 (2002, 2003), Super 9S 50 (2004) 18
1610K-KXCX-M30 on the factory drawing 1610K-KXCX-M30Carburetor Assembly ZX 50 (2000) 18
1610K-LEA6-E00 on the factory drawing 1610K-LEA6-E00Throttle Body Assembly Yager GT 200i (2009) 18
1610K-LEC1-900 on the factory drawing 1610K-LEC1-900Carburetor Assembly MONGOOSE 300 (2008 to 2010) 18
16100-LEA3-E90 on the factory drawing 16100-LEA3-E90Throttle Body Assembly Compagno 50 (2013) 16
16100-LGS6-M30 on the factory drawing 16100-LGS6-M30Throttle Body Assembly Like 200i (2012, 2013), LIKE 200 (2010), LIKE (2019) 16
16100-LKC7-900 on the factory drawing 16100-LKC7-900Throttle Body Assembly Compagno 110i (2013, 2016) 16
16100-AGA8-M00 on the factory drawing 16100-AGA8-M00Throttle Body Assembly MXU 700 (2020, 2021), MXU 700i (2022, 2026), MXU 700 LE (2020), MXU 700i LE (2021, 2023 to 2025) 15
16100-LHA2-M32 on the factory drawing 16100-LHA2-M32Carburetor Assembly SUPER 8 150R ON-ROAD (2015), SUPER 8 150X OFF-ROAD (2015), SUPER 8 150X (2020 to 2022), SUPER 8 150 (2023) 15
1610K-KKD6-B20 on the factory drawing 1610K-KKD6-B20Carburetor Assembly Vitality 50 (2004) 15
1610K-LHG7-900 on the factory drawing 1610K-LHG7-900Throttle Body Assembly X-TOWN300i ABS (2019 to 2023), X-TOWN 300 (2018), DT X 360 (2026) 15
16100-LCD3-M30 on the factory drawing 16100-LCD3-M30Carburetor Assembly People S 125 (2004, 2008) 14
1610K-LDG7-900 on the factory drawing 1610K-LDG7-900Throttle Body Assembly Xciting R 500i (2009, 2013, 2014), Xciting R 500i ABS (2009) 14
16100-LHA2-M31 on the factory drawing 16100-LHA2-M31Carburetor Assembly Super 8 150 (2008, 2011, 2013) 13
16100-ALB6-M30 on the factory drawing 16100-ALB6-M30Carburetor Assembly K-PIPE 125 (2016, 2020 to 2022) 12
16100-LDH1-M30 on the factory drawing 16100-LDH1-M30Carburetor Assembly People S 250 (2007, 2008) 12
1610K-KHD8-M31 on the factory drawing 1610K-KHD8-M31Carburetor Assembly Bet & Win 150 (2008) 12
1610K-LCD2-M00 on the factory drawing 1610K-LCD2-M00Carburetor Assembly People S 50 (2007, 2008) 12
16100-LDB2-M30 on the factory drawing 16100-LDB2-M30Carburetor Assembly Xciting 250 (2006, 2008) 11
1610K-KHB5-M30 on the factory drawing 1610K-KHB5-M30Carburetor Assembly People 150 (2002) 11
1610K-KHD8-M00 on the factory drawing 1610K-KHD8-M00Carburetor Assembly Bet & Win 150 (2006) 11
1610K-LBA2-E00 on the factory drawing 1610K-LBA2-E00Carburetor Assembly Xciting 500 (2007, 2008) 11
16100-LFB5-M30 on the factory drawing 16100-LFB5-M30Carburetor Assembly Movie 150i (2013) 10
16100-LGC6-E00 on the factory drawing 16100-LGC6-E00Throttle Body Assembly AK 550 (2021 to 2023, 2025) 10
16100-LGM5-900 on the factory drawing 16100-LGM5-900Throttle Body Assembly SPADE 150 FI (2018, 2020, 2021) 10
1610K-KEB7-E02 on the factory drawing 1610K-KEB7-E02Carburetor Assembly Cobra 50 (2000, 2001) 10
1610K-KFA6-E000-GM on the factory drawing 1610K-KFA6-E000-GMCarburetor Assembly (Stop Production ) People 50 (2002) 10
1610K-KHE7-M30 on the factory drawing 1610K-KHE7-M30Carburetor Assembly Bet & Win 250 (2003) 10
1610K-KKD6-M30 on the factory drawing 1610K-KKD6-M30Carburetor Assembly Yup 50 (2002), Sting 50 (2009) 10
1610K-LBD3-900 on the factory drawing 1610K-LBD3-900Carburetor Assembly MONGOOSE 50 (2004) 10
1610K-LBD4-800 on the factory drawing 1610K-LBD4-800Carburetor Assembly MONGOOSE 90 (2005) 10
1610K-LGF3-M30 on the factory drawing 1610K-LGF3-M30Carburetor Assembly Sento 50 (2009) 10
1610K-LLB5-M30 on the factory drawing 1610K-LLB5-M30Carburetor Assembly Super 9S 50 (2008) 10
16100-ACB9-E10 on the factory drawing 16100-ACB9-E10Throttle Body Assembly LIKE (2019, 2021) 9
16100-AKB9-M00 on the factory drawing 16100-AKB9-M00Throttle Body Assembly UXV (2022, 2023), UXV 450i Platform (2023), UXV 450i LE EPS (2023, 2024) 9
16100-ALB1-910 on the factory drawing 16100-ALB1-910Throttle Body Assembly UXV 500i G (2015) 9
1610K-AKB8-E00 on the factory drawing 1610K-AKB8-E00Throttle Body Assembly AK 550 ST (2026), CV3 (2023, 2026) 9
16100-AEB9-M30 on the factory drawing 16100-AEB9-M30Throttle Body Assembly New People S 150 (2020, 2023), People S 150i ABS (2022, 2026) 8
1610K-KFA6-E10 on the factory drawing 1610K-KFA6-E10Carburetor Assembly People 50 (2000) 8
1610K-KFA6-E05 on the factory drawing 1610K-KFA6-E05Carburetor Assembly People 50 (2007) 7
1610K-KGB5-B20 on the factory drawing 1610K-KGB5-B20Carburetor Assembly Super 9S 50 (2004) 7
1610K-KKC4-M30 on the factory drawing 1610K-KKC4-M30Carburetor Assembly Grand Vista 250 (2004) 7
1610K-KKC4-M31 on the factory drawing 1610K-KKC4-M31Carburetor Assembly Grand Vista 250 (2008) 7
1610K-LBD6-E00 on the factory drawing 1610K-LBD6-E00Carburetor Assembly Vitality 50 (2006) 7
1610K-LBD6-E01 on the factory drawing 1610K-LBD6-E01Carburetor Assembly Vitality 50 (2006) 7
1610K-LBD6-M30 on the factory drawing 1610K-LBD6-M30Carburetor Assembly Vitality 50 (2008) 7
1610K-LEA7-900 on the factory drawing 1610K-LEA7-900Throttle Body Assembly Downtown 300i (2011) 7
1610K-LLJ3-E00 on the factory drawing 1610K-LLJ3-E00Carburetor Assembly People 250 (2004) 7
1610K-ACD5-900 on the factory drawing 1610K-ACD5-900Throttle Body Assembly DOWNTOWN GT 350 (2026) 6
1610K-LGF9-E00 on the factory drawing 1610K-LGF9-E00Throttle Body Assembly Downtown 200i (2011) 6
16100-LEJ2-M31 on the factory drawing 16100-LEJ2-M31Carburetor Assembly Super 8 50 (2008) 5
1610K-KHE7-M31 on the factory drawing 1610K-KHE7-M31Carburetor Assembly Bet & Win 250 (2008) 5
1610K-LBD4-900 on the factory drawing 1610K-LBD4-900Carburetor Assembly MONGOOSE 90 (2004) 5
1610K-LGE5-900 on the factory drawing 1610K-LGE5-900Throttle Body Assembly People GTi 300 ABS (2012), PEOPLE GTi 300 (2016) 5
1610K-LDC8-M30 on the factory drawing 1610K-LDC8-M30Carburetor Assembly Agility 50 (2006) 4
16100-LEJ2-M30 on the factory drawing 16100-LEJ2-M30Carburetor Assembly Agility 50 (2012) 3
1610K-KHC5-E10 on the factory drawing 1610K-KHC5-E10Carburetor Assembly Filly 50 (2002) 3
1610K-LGF9-900 on the factory drawing 1610K-LGF9-900Throttle Body Assembly People GTi 200 (2012, 2013) 3
16100-BAD7-E00 on the factory drawing 16100-BAD7-E00Throttle Body Assembly MXU (2022) 2
16100-BLD3-M00 on the factory drawing 16100-BLD3-M00Throttle Body Assembly MONGOOSE 110i (2025) 2
16100-LGA3-M30 on the factory drawing 16100-LGA3-M30Carburetor Assembly Quannon 150 (2009) 2
1610K-LDF2-900 on the factory drawing 1610K-LDF2-900Throttle Body Assembly Xciting R 250i (2009) 2
1610K-LKF5-900 on the factory drawing 1610K-LKF5-900Throttle Body Assembly Xciting 400i ABS (2018) 2
1610K-LLB1-M00 on the factory drawing 1610K-LLB1-M00Carburetor Assembly MXU 150 (2026) 2
1610K-LDH5-900 on the factory drawing 1610K-LDH5-900Carburetor Assembly Generator KP-3000 (2009) 1

Where the carburetor is drawn

Open a card to see the carburetor on that machine's factory diagram, with its callout number and every neighbouring part. The same part can sit under a different diagram code on another model, so use the chart above to find yours.

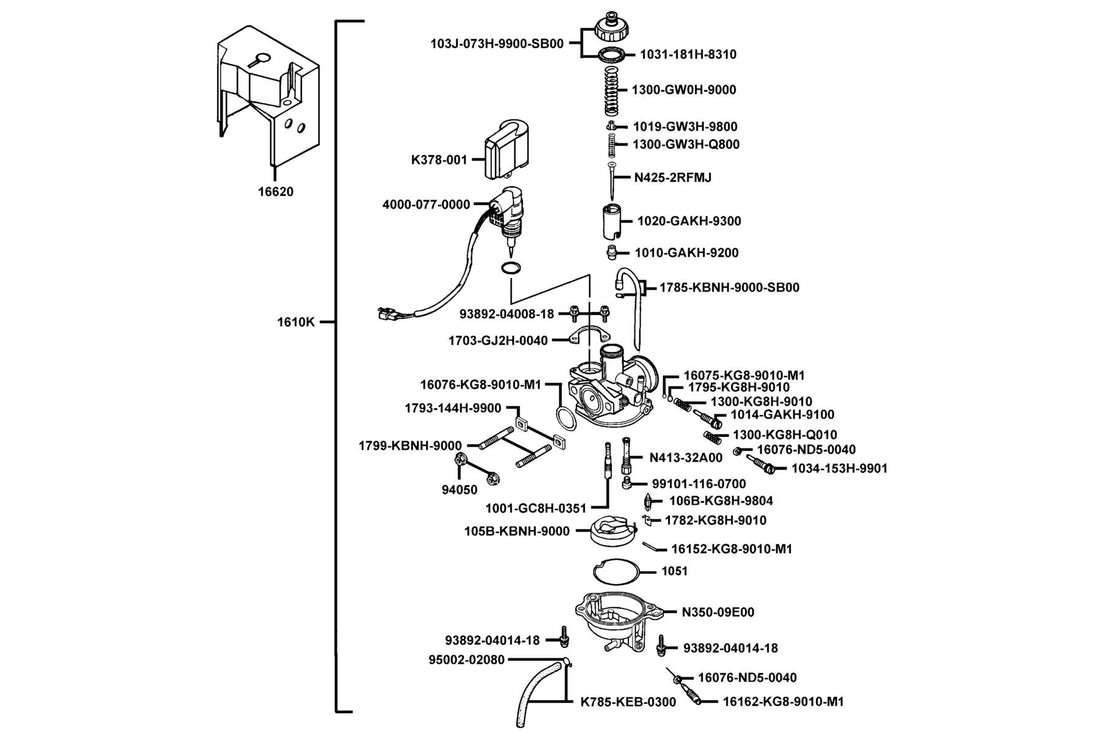

KYMCO People 50 (2008) E11 Carburetor parts diagramE11 CarburetorPeople 50 (2008) · ScooterOpen the diagram → KYMCO MXU 150 (2026) E09 Carburetor parts diagramE09 CarburetorMXU 150 (2026) · ATVOpen the diagram → KYMCO UXV 700i (2025) E10 Throttle Body parts diagramE10 Throttle BodyUXV 700i (2025) · Side by sideOpen the diagram → KYMCO Venox 250 (2008+) E17 Carburetor parts diagramE17 CarburetorVenox 250 (2008+) · MotorcycleOpen the diagram →

The whole carburetor, or its parts?

A scooter or ATV that idles badly or will not run after sitting often needs its carburetor cleaned, or a jet, float needle or gasket, rather than a new assembly. Your model's carburetor diagram lists those parts one by one, with their own part numbers.

How to confirm fitment for your exact model

Model names repeat across years and regions, so the safest way to order the right carburetor is to confirm it on your model's own diagram:

  1. Find your machine. Pick it on the All Models page, or decode your VIN with the VIN lookup to land on the exact model year and colour.
  2. Open the diagram. The exploded views mirror KYMCO's factory fiche; the diagram cards on this page show which drawing the carburetor sits on.
  3. Match the number, then order. Check that the number on the diagram matches the row in the chart, then follow it to the product page on kymcopartsstore.com, where the part is ordered.

If a part number has been superseded, the product page shows the replacement, so you always receive the current factory part.

Find your KYMCO and see every part on its drawingType your VIN or pick the model, year and colour, then click the part on the factory diagram.
Look up your VINBrowse all models

Service specs by model

For one machine's battery, plug, oil, belt, torque figures and service intervals on a single page, open its service sheet:

Sources

  • Part numbers and fitment: KYMCO's factory parts catalogue, the same exploded-view diagrams as our parts diagrams.
  • Service intervals, torque and capacities for your exact model and year: KYMCO USA owner's manuals. Where this guide and your manual differ, the manual wins.
